Item no. 1174
Double Square-Seam Folder XP
horizontal, steel
With the Double Square-Seam Folder XP from RAU, both the single Square-Seam Folder and the Double Square-Seam Folder can be created in a single operation. It enables efficient and time-saving execution of two work steps.
The tool’s hard-wearing and replaceable PVC jaws protect sensitive surfaces from scratches and damage, resulting in a clean appearance. The tool is particularly suitable for color-coated metal sheets.
The ergonomic handles of the WDF XP enable comfortable and easy handling. The WDF XP is also characterized by its robustness and durability, so you will enjoy this high-quality product for a long time.
The tool’s hard-wearing and replaceable PVC jaws protect sensitive surfaces from scratches and damage, resulting in a clean appearance. The tool is particularly suitable for color-coated metal sheets.
The ergonomic handles of the WDF XP enable comfortable and easy handling. The WDF XP is also characterized by its robustness and durability, so you will enjoy this high-quality product for a long time.


Protects coated surfaces
due to PVC jaws
2 in 1
2 work steps, 1 tool: Double Square-Seam Folder and Double Square-Seam Folder
Simple and robust
Durable quality product
The tool
Seam without scratches

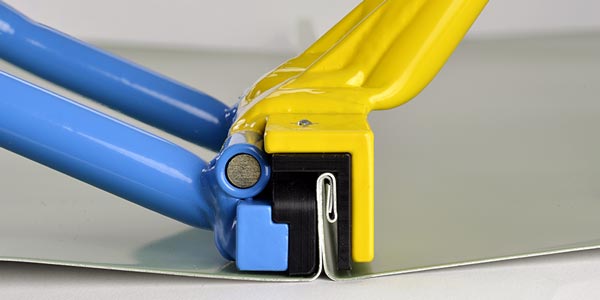

The Double Square-Seam Folder XP has been specially developed for the protection of coated surfaces. The robust PVC jaws protect the sheet metal profiles from scratches and damage.
7 advantages, 1 tool
- 1 tool, 2 work steps: Double Square-Seam Folder + Double Standing Seam
- Robust and resistant
- No scratched surface
- Optimal for color-coated metal sheets
- Hard-wearing PVC jaws
- Ergonomic handles
- Easy handling

Technical
Tool details
Double Square-Seam Folder XP horizontal (steel)
working width | 220 mm |
Height | 65 mm |
Width / Depth | 400 mm |
Weight | 2.6 kg |
Material density max. | Copper / zinc / aluminium up to 0.8 mm Galvanized / colour-coated steel up to 0.7 mm Stainless steel up to 0.5 mm |
EAN GTIN
Double Square-Seam Folder WDF XP horizontal (steel): 4262453340157

Step 1: Preparation
Tool on the closed square-seam. Position the angle jaw in the center.

Step 2: Double fold
Press the handles apart. Square-seam becomes double-seam.

Result: Precise seam
The result is a professional and clean double fold.
Store
Spare parts
Item no. 66153 | Replacement jaw for WDF XP, incl. screws |
Item no. 66152 | Replacement bracket for WDF XP, incl. rivets |
Item no. 66151 | Replacement jaw set for WDF XP, incl. connecting material |
Seam with the Double Square-Seam Folder
